Passive BLE Monitor integration

By Manufacturer

Table of contents

Support for additional sensors can be requested by opening an issue.
Check the Senor Request page on how to provide useful information for adding new sensors.

NOTE: Properties with a * have additional information in the device notes.

Acconeer

Acconeer XM122
XM122
motion
temperature
battery
rssi
Acconeer XM122
Acconeer XM126
XM126
motion
temperature
battery
rssi
Acconeer XM126

Air Mentor

Air Mentor 2S
Air Mentor 2S Connected 7-in-1 Air Quality Monitor
temperature
temperature calibrated
humidity
tvoc
formaldehyde
aqi
air quality
CO2
PM2.5
PM10
rssi
Air Mentor 2S
Triangual body, no screen
Active Scan required
true
Notes:
  • aqi is the Air Quality Index, represented as a number. More information about this index can be found on https://www.airnow.gov/aqi/aqi-basics/
Air Mentor Pro 2
Air Mentor PRO 2 6-in-1 Indoor Air Quality Monitor
temperature
temperature calibrated
humidity
tvoc
aqi
air quality
CO2
PM2.5
PM10
rssi
Air Mentor Pro 2
Triangual body, no screen
Active Scan required
true
Notes:
  • aqi is the Air Quality Index, represented as a number. More information about this index can be found on https://www.airnow.gov/aqi/aqi-basics/

Almendo

bluSensor Mini BSP02AIQ
Almendo bluSensor Mini BSP02AIQ
temperature
humidity
tvoc
aqi
CO2
rssi
bluSensor Mini BSP02AIQ
rectangular body, no screen
Notes:
  • aqi is the Air Quality Index, represented as a number. More information about this index can be found in the documentation https://www.blusensor.com/zdn/pdf/datasheets/BSP02AIQ%20EN%20datasheet.pdf

Amazfit

Smart Scale
Smart Scale
weight *
non-stabilized weight *
impedance
pulse
rssi
Smart Scale
Notes:
  • weight is only reported after person is identified
  • non-stabilized weight reporting all weight measurements
  • For additional data like BMI, viscaral fat, etc. you can use e.g. the bodymiscale custom integration.
  • If you want to split your measurements into different persons, you can use this template sensor

Apple

iBeacon
iBeacon
cypress temperature *
cypress humidity *
rssi
measured power
uuid *
mac
major
minor
iBeacon
Active Scan required
true
Notes:
  • cypress temperature This sensor is disabled by default and can be turned on in the device menu. Measured in °C. Calculated based on minor 175.72 * ((minor & 0xff) * 256) / 65536 - 46.85
  • cypress humidity This sensor is disabled by default and can be turned on in the device menu. Measured in RH%. Calculated based on minor 125.0 * (minor & 0xff00) / 65536 - 6
  • uuid This sensor is disabled by default and can be turned on in the device menu.
  • iBeacon is not a device, but a protocol developed by Apple on which beacons work, for example Apple AirTags.
  • It should not be used for tracking MAC addresses, they can be dynamic, there is a Beacon UUID parameter for this.

Beckett Corp.

BeckettLink 7652a
Genisys oil burner interface
rssi
burner_state *
burner_last_end_cause *
burner_cycle_count *
burner_product *
burner_device *
burner_serial *
burner_is_bootloader *
burner_connectable *
burner_advertisement_version
BeckettLink 7652a
Rectangular box which plugs in to a Beckett HVAC control module .
Active Scan required
true
Notes:
  • burner_state indicates the current operational state of the burner. Possible values might include states such as: * Standby * MotorRelayTest * Prepurge * TFI * CarryOver * Run * PostPurge * Recycle * Lockout * PumpPrime * MotorRelayFeedbackTest * NoIgnitionPrePurge
  • burner_last_end_cause can have the following values:
    • NoEndCauseReported
    • CFHEnded
    • FlameLoss
    • PumpPrime
    • ManualShutdown
    • LowVoltage
    • DidNotLight
    • FlameEndOfPretime
    • RelayFailure
  • burner_cycle_count indicates how many times the burner has ignited. `It persists through power loss.
  • burner_product can have the following values:
    • Genisys75xx
    • GenisysOil
    • Iot7653
    • Genisys7505
    • LegacyGenisys
    • Iot7652
    • BeckettLinkPro
    • GenisysGas
  • burner_device identifies the specific hardware model of the burner within its burner_product family. Possible examples include:
    • DeviceNameKey7505_7575
    • DeviceNameKey7556
    • DeviceNameKey7559
    • DeviceNameKey7580
  • burner_serial belongs to the burner control module.
  • burner_is_bootloader indicates whether the burner is currently running in bootloader/firmware-update mode (as the device supports OTA DFU)
  • burner_connectable specifies whether the burner is advertising itself as connectable over BLE.
  • Active scan is not required. It might give higher resolution data, allowing closer tracking of burner ignition cycles. Battery life is irrelevant since the system is mains powered.
  • The device is a BLE interface module to a modular HVAC burner system. The exact nomenclature is fuzzy. It was tested on a BeckettLink Pro 7652a BLE interface, coupled to a Genisys 7505 burner control.
  • In principle this integration supports all Beckett systems which compatible with the BeckettLink Pro 7652a BLE interface. However, only the Genisys 7505 burner control host module has been tested. In other words burner_product may not match the physical device, e.g. a 7505 device via a BeckettLinkPro presents as a LegacyGenisys
  • These 7652a modules are expensive on EBay, but cheap – With overnight shipping – From arbitrary online parts houses. The 7652a is discontinued. However, its protocol may be substantially or entirely similar to other Beckett BLE interfaces.
  • This integration was developed by inspecting a React Native bundle inside the MyTechnician android app.
  • The wire protocol between the 7652a BLE interface and the 7505 (or any other) burner control module is plain old RS232, with a very similar structure to the un-XORed BLE ADV packet.
  • Much more interesting and complete diagnostic data is available via actively read characteristics (i.e. outside the scope of this passive BLE integration), but, required to read these characteristics is a physical presence check comprising a press of the “reset” button on the burner control module. It is currently unknown whether this can be overridden on stock firmware. Also, exposing the burner control’s writeable characteristics – Config and firmware update – presents additional risk.

BlueMaestro

Pebble
BM-PEBBLE-MONITOR Pebble™ Environment Monitor & Data Logger
temperature
humidity
pressure *
dewpoint *
rssi
Pebble
Rriangular rounded sensor, no screen
Notes:
  • pressure Pressure measurement needs confirmation that it is correct. Please open an issue if you think pressure is correct/not correct.
  • dewpoint Dewpoint measurement needs confirmation that it is correct. Please open an issue if you think dewpoint is correct/not correct.
  • The sensor sends three temperatures, only one is used as temperature.
Tempo Disc THD
Tempo Disc Bluetooth Temperature, Humidity and Dew Point Sensor Beacon and Data Logger
temperature
humidity
dew point
rssi
Tempo Disc THD
Round sensor, no screen
Broadcast Rate
Variable, at least once a minute.
Tempo Disc THPD
Tempo Disc Bluetooth Temperature, Humidity, Dew Point and Pressure Sensor Beacon and Data Logger
temperature
humidity
pressure
rssi
Tempo Disc THPD
Round sensor, no screen
Broadcast Rate
Variable, at least once a minute.
Notes:
  • The sensor does not send the Dew Point in its BLE advertisements

Blustream/D’Addario/Taylor

D'Addario Humiditrak PW-HTK-01 / Taylor TaylorSense
Blustream
temperature
humidity
acceleration
rssi
D'Addario Humiditrak PW-HTK-01 / Taylor TaylorSense
Notes:
  • This sensor is sold in different versions, like the Taylor TaylorSense guitar sensor that can be build into your Taylor guitar or the D’Addario Humiditrak PW-HTK-01, which can be build into your music instrument or case. Both devcices use Blustream Technology.

BTHome

DIY-sensors
BTHome sensors
binary
door
light
lock
motion
opening
smoke
switch
battery
CO2
conductivity
count
dew point
energy
humidity
illuminance
weight
moisture
PM2.5
PM10
power
pressure
rssi
temperature
TVOC
voltage
weight
binary
opening
switch
DIY-sensors
Encrypted Advertisements
Optional (16 byte bindkey)
Notes:
  • BTHome is a BLE format for DIY sensors. BLE monitor supports both V1 and V2 and we support most measurement types, but not all yet. If you miss one of the measurement types, please let us know, such that we can add it. More information about the format can be found on BTHome website
  • BTHome is supported on some Xiaomi and Qingping sensors with custom ATC pvvx firmware (select BTHome as advertising format) and on b-parasite sensors.
  • Multiple measurements of the same type is not supported yet in BLE monitor. Please use the official BTHome integration in HA instead.

Chef iQ

CQ60
Wireless Meat Thermometer
temperature probe tip *
temperature probe *
ambient temperature *
meat temperature *
rssi
CQ60
pen-shaped probe.
Active Scan required
true
Notes:
  • temperature probe tip The probe has multiple temperature sensors. temperature probe tip is the sensor at the ring closest to the tip of the probe.
  • temperature probe temperature probe 1, 2 and 3 are the sensors at the other rings, where 1 is the ring next to the ring at the tip of the probe and 3 is the ring closest to the black end of the probe. Note that all sensors are broadcasting temperature with 1 digit, only temperature probe 3 is broadcasting temperature with 0 digits (before averaging in BLE monitor).
  • ambient temperature ambient temperature is the sensor in the black part of the probe. Note that there seems to be an upper limit for the broadcasted ambient temperature.
  • meat temperature meat temperature is the minimum of temperature probe tip, temperature probe 1 and temperature probe 2.

Ela

Blue Puck RHT
Ela Blue Puck RHT
temperature
humidity
rssi
Blue Puck RHT
Round puck, no screen
Notes:
  • Rebrand of the Teltonika Blue Puck THT
Blue Puck T EN12830
Ela Blue Puck T EN12830
temperature
rssi
Blue Puck T EN12830
Round puck, no screen
Notes:
  • Rebrand of the Teltonika Blue Puck T

Garnet

SeeLevel II 709-BTP3
SeeLeveL II 709-BTP3 Tank Monitor
tank *
temperature
voltage
rssi
SeeLevel II 709-BTP3
Tank Monitor
Notes:
  • tank Level of the tank in percentage of the total volume
  • The sensor also broadcasts volume and a total (per tank). These sensors are currently not implemented, as in tests these values stay 0 all the time. If you want to debug these sensors, you can make them visible by enabling debug logging. The values will be logged in the HA logs. Please report back here if these sensors actually report anything, such that we can implement them.

Govee

H5051
Thermometer Hygrometer (BLE only)
temperature
humidity
battery
rssi
H5051
Oval body, LCD screen
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5055
Smart Meat Thermometer
temperature probe
temperature alarm probe
battery
rssi
H5055
Square body, with 6 probes.
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5071
Thermometer Hygrometer (BLE only)
temperature
humidity
battery
rssi
H5071
Oval body, LCD screen
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5072
Thermometer Hygrometer
temperature
humidity
battery
rssi
H5072
Oval body, LCD screen.
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5074
Thermometer Hygrometer
temperature
humidity
battery
rssi
H5074
Square body, no screen.
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5075
Thermometer Hygrometer
temperature
humidity
battery
rssi
H5075
Rounded square body, LCD screen
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5101/H5102
Thermometer Hygrometer
temperature
humidity
battery
rssi
H5101/H5102
Rounded square body, LCD screen
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5106
Thermometer Smart Air Quality Monitor
temperature
humidity
pm2.5
rssi
H5106
Rounded rectangular body with screen
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5177
Thermometer Hygrometer
temperature
humidity
battery
rssi
H5177
Rounded square body, Backlight LCD Touchscreen
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5178
Indoor/Outdoor Thermometer Hygrometer
temperature
humidity
battery
rssi
H5178
Rounded square body, Backlight LCD Touchscreen with additional rounded rectangular remote sensor for outdoor measurements.
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work. Note that two devices will be created in Home Assistant for this sensor, one with the actual MAC address, which is the indoor sensor, and one with the MAC address increased by 1, which is the outdoor sensor. You can also distinguish between the indoor and outdoor sensor by looking at the device type.
H5179
Thermometer Hygrometer (BLE only)
temperature
humidity
battery
rssi
H5179
Square body, no screen.
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5182
Smart Meat Thermometer
temperature probe
temperature alarm probe
rssi
H5182
Square body, with 2 probes.
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5183
Meat Thermometer
temperature probe
temperature alarm probe
rssi
H5183
Square body, with probe.
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5184
Smart Meat Thermometer
temperature probe
temperature alarm probe
rssi
H5184
Square body, with 4 probes.
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5185
Smart Meat Thermometer
temperature probe
temperature alarm probe
rssi
H5185
Square body, with 2 probes.
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
H5198
Grilling Meat Thermometer
temperature probe
temperature alarm probe
low temperature alarm probe
rssi
H5198
Square body, with 4 probes.
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.

HHCC

HHCCJCY10
Plant sensor
temperature
moisture
conductivity
illuminance
battery
rssi
HHCCJCY10
pink plant sensor
Broadcast Rate
~1/min.

HolyIOT

HolyIOT BLE sensors
BLE sensors
battery
rssi
temperature
humidity
pressure
button *
vibration
HolyIOT BLE sensors
Encrypted Advertisements
true
Notes:
  • button press types are ‘toggle’ or ‘no press’
  • Supported measurement types depend on the model.
  • After each button press, the sensor state shows ‘Toggle’. It will return to no press after the time set with the reset_timer option.

Hörmann

Supramatic E4 BS
Hörmann Supramatic E4 BS garage door opener
opening
opening percentage
rssi
Supramatic E4 BS
garage door opener

Inkbird

iBBQ-1
Inkbird iBBQ-1
temperature probe
rssi
iBBQ-1
iBBQ-2
Inkbird iBBQ-2
temperature probe
rssi
iBBQ-2
iBBQ-4
Inkbird iBBQ-4
temperature probe
rssi
iBBQ-4
iBBQ-6
Inkbird iBBQ-6
temperature probe
rssi
iBBQ-6
IBS-P01B
Inkbird Pool Thermomenter
temperature
battery
rssi
IBS-P01B
Active Scan required
true
IBS-TH1
Inkbird IBS-TH1
temperature
temperature probe 1 *
humidity *
battery
rssi
IBS-TH1
Active Scan required
true
Notes:
  • temperature probe 1 The external temperature probe is only available on the plus version of the Inkbird sensor. When the external probe is connected, the sensor will stop reporting the internal temperature.
  • humidity Humidity is only reported by the internal sensor.
IBS-TH2
Inkbird IBS-TH2
temperature
temperature probe 1 *
humidity *
battery
rssi
IBS-TH2
Active Scan required
true
Notes:
  • humidity Some IBS-TH2 devices are not sending humidity data, only temperature. Both are sold as IBS-TH2. Sensors that only send temperature will be recognized as IBS-TH2/P01R in BLE monitor, the ones with humidity as IBS-TH.
  • temperature probe 1 The external temperature probe is only available on the plus version of the Inkbird sensor. When the external probe is connected, the sensor will stop reporting the internal temperature.

iNode

Care Sensor 1
iNode Care Sensor 1
temperature
motion
acceleration
battery
voltage
rssi
Care Sensor 1
Care Sensor 2
iNode Care Sensor 2
temperature
motion
acceleration
battery
voltage
rssi
Care Sensor 2
Care Sensor 3
iNode Care Sensor 3
temperature
humidity
motion
acceleration
battery
voltage
rssi
Care Sensor 3
Care Sensor 4
iNode Care Sensor 4
temperature
motion
acceleration
battery
voltage
rssi
Care Sensor 4
Notes:
  • According to the iNode website, this sensor should support magnetic field measurements. The BLE documentation does not show where this information is stored in the BLE advertisement. If you have this sensor and if you would like support for these magnetic field measurements, please open an issue on github.
Care Sensor 5
iNode Care Sensor 5
temperature
motion
acceleration
magnetic field
battery
voltage
rssi
Care Sensor 5
Care Sensor 6
iNode Care Sensor 6
temperature
motion
acceleration
battery
voltage
rssi
Care Sensor 6
Care Sensor HT
iNode Care Sensor HT
temperature
humidity
battery
voltage
rssi
Care Sensor HT
Care Sensor PHT
iNode Care Sensor PHT
temperature
pressure
humidity
battery
voltage
rssi
Care Sensor PHT
Care Sensor PT
iNode Care Sensor PT
temperature
battery
voltage
rssi
Care Sensor PT
Care Sensor T
iNode Care Sensor T
temperature
humidity
battery
voltage
rssi
Care Sensor T
Energy Meter
Energy Meter
battery
voltage
energy
power
rssi
Energy Meter
Broadcast Rate
~30/min. (See Notes)
Notes:
  • Energy meter based on pulse measuring.
  • Energy and power are calculated based on the formula’s as given in the documentation.
  • The constant factor that is used for these calculations as well as the light level are given in the energy sensor attributes.
  • Advertisements are broadcasted every 1 a 2 seconds, but the measurement data is only changed once a minute.

Jaalee

JHT
Temperature & Humidity sensor
temperature
humidity
battery
rssi
JHT
Square rounded body
Active Scan required
true
Broadcast Rate
~1/sec.

JINOU

BEC07-5
JINOU BEC07-5
temperature
humidity
rssi
BEC07-5

Kegtron

KT-100
KT-100
keg size
volume start
port state
port index
port count
port name
volume dispensed port 1
rssi
KT-100
Active Scan required
true
KT-200
KT-200
keg size
volume start
port state
port index
port count
port name
volume dispensed port 1
volume dispensed port 2
rssi
KT-200
Active Scan required
true

KKM

K6
Temperature/Humidity Sensor Beacon K6
temperature
humidity
acceleration
battery
voltage
rssi
K6
Active Scan required
true

Laica

PS7011, PS7020
Laica Smart Scale
weight
impedance *
rssi
PS7011, PS7020
Notes:
  • impedance is only reported after the scale is stabilized

Linptech

ES3
Linptech Human Presence Sensor
illuminance *
motion *
battery
rssi
ES3
Encrypted Advertisements
true
Broadcast Rate
See Notes
Notes:
  • illuminance is measured in lux.
  • motion Motion state is ‘motion detected’ or ‘clear’.
    • You can use the reset_timer option if you want to use a different time to set the sensor to motion clear.
HS1BB(MI)
Linptech Motion Sensor
illuminance *
motion *
battery
rssi
HS1BB(MI)
Encrypted Advertisements
See Notes
Broadcast Rate
See Notes
Notes:
  • illuminance is measured in lux.
  • motion Motion state is ‘motion detected’ or ‘clear’.
    • Illuminance is broadcasted upon every 10 minutes and when motion is detected. Motion state is broadcasted when motion is detected. Additionally, motion clear messages are broadcasted at 1, 2, 5, 10, 20 and 30 minutes after the last motion. - You can use the reset_timer option if you want to use a different time to set the sensor to motion clear.
K9B
Switch (one button version)
one btn switch *
button switch
rssi
K9B
Encrypted Advertisements
Probably (not confirmed yet)
Notes:
  • one btn switch returns ‘short press’, ‘double press’ or ‘long press’
  • There are three different versions of this switch, with one, two or three buttons.
  • The switch sensor state will return to no press after the time set with the reset_timer option. It is advised to change the reset time to 1 second (default = 35 seconds).
K9B
Switch (two button version)
two btn switch left *
two btn switch right *
button switch
rssi
K9B
Encrypted Advertisements
Probably (not confirmed yet)
Notes:
  • two btn switch left returns ‘short press’, ‘double press’ or ‘long press’
  • two btn switch right returns ‘short press’, ‘double press’ or ‘long press’
  • There are three different versions of this switch, with one, two or three buttons.
  • The switch sensor state will return to no press after the time set with the reset_timer option. It is advised to change the reset time to 1 second (default = 35 seconds).
K9B
Switch (three button version)
three btn switch left *
three btn switch middle *
three btn switch right *
button switch
rssi
K9B
Encrypted Advertisements
Probably (not confirmed yet)
Notes:
  • three btn switch left returns ‘short press’, ‘double press’ or ‘long press’
  • three btn switch middle returns ‘short press’, ‘double press’ or ‘long press’
  • three btn switch right returns ‘short press’, ‘double press’ or ‘long press’
  • There are three different versions of this switch, with one, two or three buttons.
  • The switch sensor state will return to no press after the time set with the reset_timer option. It is advised to change the reset time to 1 second (default = 35 seconds).
K9BB
Switch (one button version, battery powered)
one btn switch *
button switch
battery
rssi
K9BB
Encrypted Advertisements
Probably (not confirmed yet)
Notes:
  • one btn switch returns ‘short press’, ‘double press’ or ‘long press’
  • This is the battery powered version of the Linptech K9B.
  • The switch sensor state will return to no press after the time set with the reset_timer option. It is advised to change the reset time to 1 second (default = 35 seconds).
KS1
Smart Wireless Switch KS1
four btn switch 1 *
four btn switch 2 *
four btn switch 3 *
four btn switch 4 *
battery
rssi
KS1
Encrypted Advertisements
Probably (not confirmed yet)
Notes:
  • four btn switch 1 returns ‘short press’, ‘double press’ or ‘long press’
  • four btn switch 2 returns ‘short press’, ‘double press’ or ‘long press’
  • four btn switch 3 returns ‘short press’, ‘double press’ or ‘long press’
  • four btn switch 4 returns ‘short press’, ‘double press’ or ‘long press’
  • There are two different versions of this switch, without temperature/humidity (KS1) and with temperature/humidity (KS1).
  • The switch sensor state will return to no press after the time set with the reset_timer option. It is advised to change the reset time to 1 second (default = 35 seconds).
KS1BP
Smart Wireless Switch KS1 Pro
temperature
humidity
four btn switch 1 *
four btn switch 2 *
four btn switch 3 *
four btn switch 4 *
battery
rssi
KS1BP
Encrypted Advertisements
Probably (not confirmed yet)
Notes:
  • four btn switch 1 returns ‘short press’, ‘double press’ or ‘long press’
  • four btn switch 2 returns ‘short press’, ‘double press’ or ‘long press’
  • four btn switch 3 returns ‘short press’, ‘double press’ or ‘long press’
  • four btn switch 4 returns ‘short press’, ‘double press’ or ‘long press’
  • There are two different versions of this switch, without temperature/humidity (KS1) and with temperature/humidity (KS1BP).
  • The switch sensor state will return to no press after the time set with the reset_timer option. It is advised to change the reset time to 1 second (default = 35 seconds).
MS1BB(MI)
Linptech Door and Window Sensor
opening
battery
status *
button
rssi
MS1BB(MI)
Encrypted Advertisements
true
Broadcast Rate
20-25 advertisements per second
Notes:
  • status The opening entity has an extra attribute “status”, which can have the following values:
    • window/door broken open
    • door not closed
PS1BB
Linptech Pressure Sensor
reset
battery
pressure state
pressure present duration
pressure not present duration
pressure present time set
pressure not present time set
rssi
PS1BB
Encrypted Advertisements
true
RS1BB
Water Immersion and Rainwater sensor
moisture detected
rssi
RS1BB
Encrypted Advertisements
true

Lockin

SV40
Lockin Push-Pull Smart Lock SV40
fingerprint *
lock *
battery
result *
key id *
action *
method *
error *
timestamp *
door
rssi
SV40
Notes:
  • fingerprint The fingerprint sensor is On if the fingerprint scan was successful, otherwise it is Off The fingerprint entity has two extra attributes, result and key id.
  • result result shows the result of the last fingerprint reading and can have the following values:
    • match successful
    • match failed
    • timeout
    • low quality (too light, fuzzy)
    • insufficient area
    • skin is too dry
    • skin is too wet
  • key id key id is an id number. For the fingerprint sensor, it can also be administrator or unknown operator
  • lock The state of the lock depends on the last action. The lock entity has five extra attributes, action, method, error and key id and timestamp
  • action action shows the last change of the lock and can have the following values:
    • unlock outside the door
    • lock
    • turn on anti-lock
    • turn off anti-lock
    • unlock inside the door
    • lock inside the door
    • turn on child lock
    • turn off child lock
    • lock outside the door
    • abnormal
  • method method shows the last used locking mechanism and can have the following values:
    • unlock outside the door
    • lock
    • bluetooth
    • password
    • biometrics
    • key
    • turntable
    • nfc
    • one-time password
    • two-step verification
    • Homekit
    • coercion
    • manual
    • automatic
    • abnormal
  • error The error state of the lock
  • timestamp The timestamp of the latest lock change

MaxxMee QJ-J

QJ-J
Personal Body Analysis Scale
weight *
non-stabilized weight *
impedance *
rssi
QJ-J
Notes:
  • weight is only reported after the scale is stabilized
  • impedance is only reported after the scale is stabilized
  • non-stabilized weight reporting all weight measurements
  • This scale is a clone of the Xiaomi Mi Scale (V2), but is using a different BLE advertisement format.
  • For additional data like BMI, viscaral fat, etc. you can use e.g. the bodymiscale custom integration.
  • If you want to split your measurements into different persons, you can use this template sensor

MiFlora

HHCCJCY01
Plant sensor
temperature
moisture
conductivity
illuminance
battery *
rssi
HHCCJCY01
Broadcast Rate
~1/min.
Notes:
  • battery Battery sensor is disabled by default. HHCCJCY01 does not send battery info with firmware v3.2.1 and later. Battery sensor is only supported when using BLE gateway to forward the BLE advertisements with ESPHome to BLE monitor. You can enable the battery sensor by going to configuration, integrations, select devices on the BLE monitor integration tile and select your device. Click on the +1 disabled entity to show the disabled sensor and select the disabled entity. Finally, click on Enable entity to enable it.

Mikrotik

TG-BT5-IN
Mikrotik TG-BT5-IN
acceleration
switch *
tilt *
dropping *
impact *
battery
rssi
TG-BT5-IN
Rectangular body, no screen
Notes:
  • switch When the switch reports on, this means that the reed switch was closed at the moment of advertising.
  • tilt When the tilt sensor reports on, this means that someone is tilting the device.
  • dropping When the dropping sensor reports on, this means that someone is dropping the device.
  • impact When the impact sensor reports on, this means that there was an impact at the moment of advertising. The attributes show in which direction the impact occurred.
  • The sensor can send its data with encryption, but this is not supported yet. If you want support for encrypted messages, we need information about how the data is encrypted and the encryption key.
TG-BT5-OUT
Mikrotik TG-BT5-OUT
temperature
acceleration
switch *
tilt *
dropping *
impact *
battery
rssi
TG-BT5-OUT
Sealed casing, no screen
Notes:
  • switch When the switch reports on, this means that the reed switch was closed at the moment of advertising.
  • tilt When the tilt sensor reports on, this means that someone is tilting the device.
  • dropping When the dropping sensor reports on, this means that someone is dropping the device.
  • impact When the impact sensor reports on, this means that there was an impact at the moment of advertising. The attributes show in which direction the impact occurred.
  • The sensor can send its data with encryption, but this is not supported yet. If you want support for encrypted messages, we need information about how the data is encrypted and the encryption key.

Moat

S2 Smart Temperature & Humidity Sensor
Moat S2
temperature
humidity
battery
rssi
S2 Smart Temperature & Humidity Sensor
Square rounded body.
Active Scan required
true
Notes:
  • Sensor has been added based on information from https://github.com/SteveOnorato/moat_temp_hum_ble. It has not been confirmed that the sensor is working correct. Please leave an message in an new issue to confirm if it is working.

MOCREO

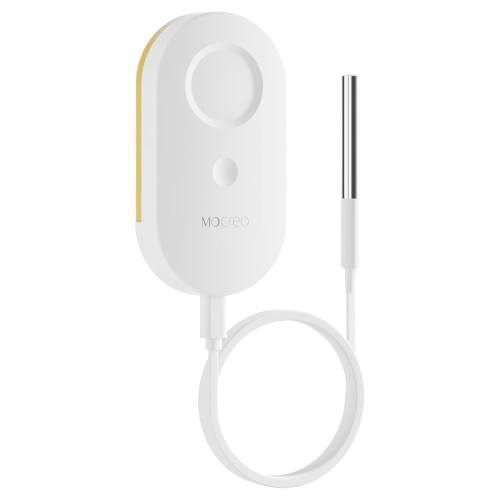

MS1
Temperature Sensor
temperature
battery
rssi
MS1
Oval body, with probe
Notes:
  • Key Features:
    • Measuring Range: -40 to +221°F
    • Accuracy: ±0.9°C (temperature)
    • BLE advertising mode (no pairing needed)
    • Low power consumption, over 2 years of battery life
    • Fully supported by Passive BLE Monitor (auto-discovery)
    • Real-time data is available in Home Assistant dashboards
    • More information can be found in MOCREO MS1 Temperature Sensor

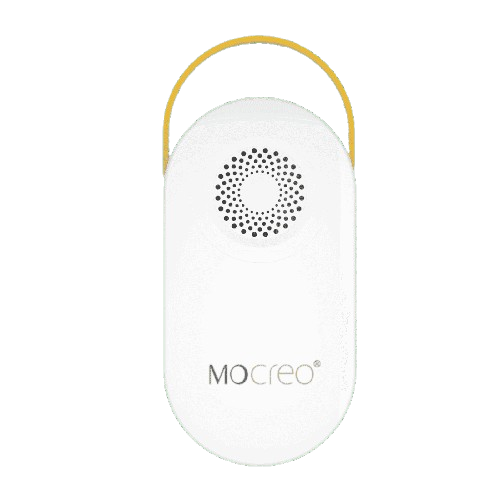

MS2
Temperature Humidity Sensor
temperature
humidity
battery
rssi
MS2
Oval body, without probe
Notes:
  • Key Features:
    • Temp range: -4 to +140°F
    • Humidity range: 0 to 100%RH
    • Temp accuracy: ±0.5℉
    • Humidity accuracy: ±2% (10~90%RH), ±3% (0~10% / 90~100%RH)
    • BLE advertising mode
    • Low power consumption, 2 years of battery life
    • Fully supported by Passive BLE Monitor (auto-discovery)
    • Real-time data is available in Home Assistant dashboards

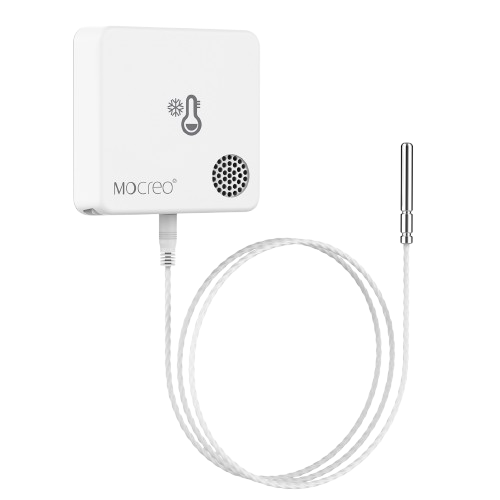

ST10
Temperature Sensor
temperature
battery
rssi
ST10
Rounded square body, with probe
Notes:
  • Key Features:
    • Measuring Range: -328 to 392℉
    • Accuracy: ±1.8°F (temperature)
    • BLE advertising mode
    • Low power consumption, 2 years of battery life
    • Fully supported by Passive BLE Monitor (auto-discovery)
    • Real-time data is available in Home Assistant dashboards
    • More information can be found in MOCREO ST10 Temperature Sensor

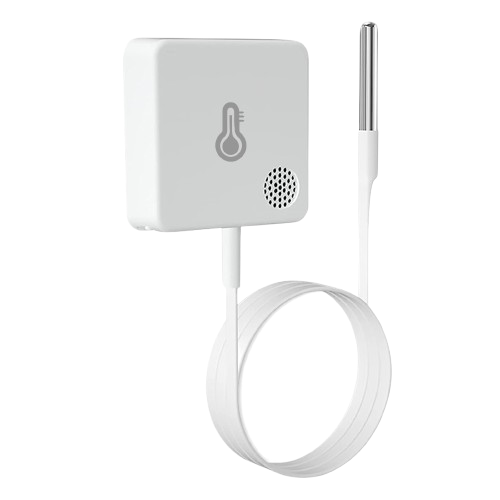

ST5
Temperature Sensor
temperature
battery
rssi
ST5
Rounded square body, with probe
Notes:
  • Key Features:
    • Measuring Range: -40 to +221°F
    • Accuracy: ±0.5℉ (temperature)
    • BLE advertising mode
    • Low power consumption, 2 years of battery life
    • Fully supported by Passive BLE Monitor (auto-discovery)
    • Real-time data is available in Home Assistant dashboards
    • More information can be found in MOCREO ST5 Temperature Sensor

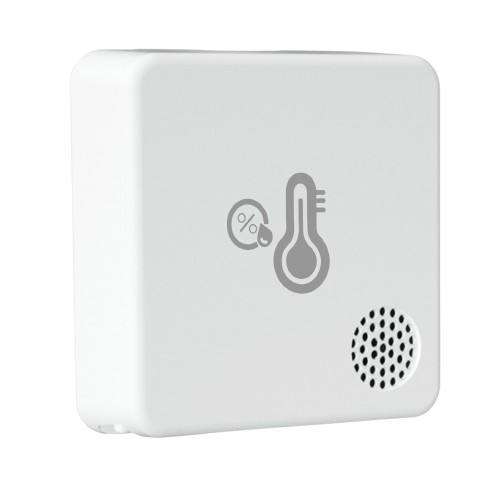

ST6
Temperature Humidity Sensor
temperature
humidity
battery
rssi
ST6
Rounded square body, with probe
Notes:
  • Key Features:
    • Temp range: -4 to +140°F
    • Humidity range: 0 to 100%RH
    • Temp Accuracy: ±0.5℉
    • Humidity Accuracy: ±2% (10~90%RH), ±4% (0~10% / 90~100%RH)
    • BLE advertising mode
    • Low power consumption, 2 years of battery life
    • Fully supported by Passive BLE Monitor (auto-discovery)
    • Real-time data is available in Home Assistant dashboards
    • More information can be found in MOCREO ST6 Temperature Humidity Sensor

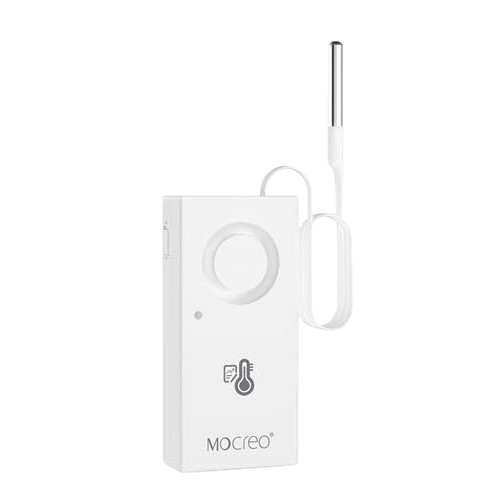

ST8
Temperature Sensor
temperature
battery
rssi
ST8
Rounded square body, with probe
Notes:
  • Key Features:
    • Measuring Range: -40 to +221°F
    • Accuracy: ±0.9°C (temperature)
    • Built-in 120dB loud beeper
    • Data logger records 32,000 temp readings
    • Connects to your phone via BLE directly, or works with a hub for remote monitoring
    • Real-time data is available in Home Assistant dashboards
    • More information can be found in MOCREO ST8 Temperature Sensor

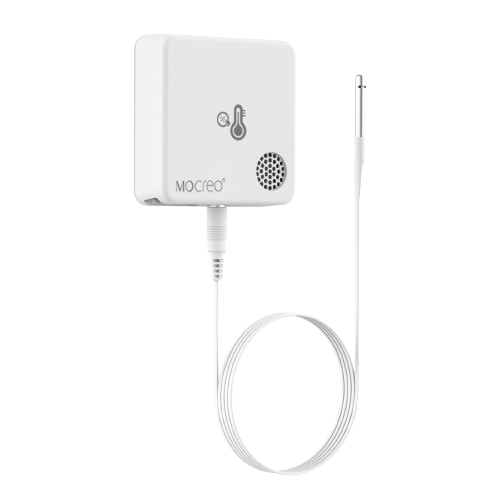

ST9
Temperature Humidity sensor
temperature
humidity
battery
rssi
ST9
Rounded square body, with probe
Notes:
  • Key Features:
    • Temp Range: -40 to +221°F (±0.6℉)
    • Humidity Range: 0 to 100%RH
    • Temp Accuracy: ±0.6℉
    • Humidity Accuracy: ±2% (10~90%RH), ±3% (0~10% / 90~100%RH)
    • BLE advertising mode (no pairing needed)
    • Low power consumption, over 2 years of battery life
    • Fully supported by Passive BLE Monitor (auto-discovery)
    • Real-time data is available in Home Assistant dashboards
    • More information can be found in MOCREO ST9 Temperature Humidity sensor

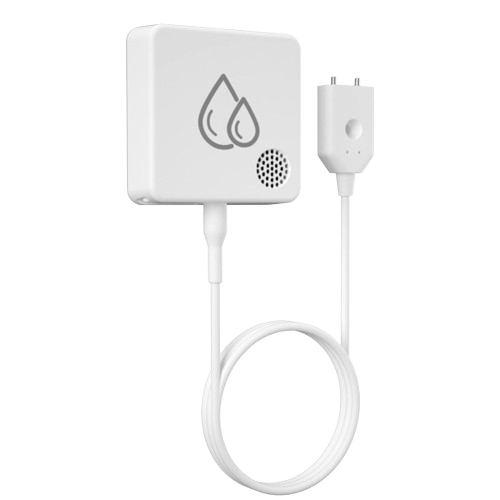

SW2
Water Leak Sensor
water leak
battery
rssi
SW2
Rounded square body, with probe
Notes:
  • Key Features:
    • Dual Alarm States: Water Detected / No Water
    • Built-in 95dB loud beeper
    • BLE advertising mode (no pairing needed)
    • Low power consumption, over 2 years of battery life
    • Fully supported by Passive BLE Monitor (auto-discovery)
    • Real-time data is available in Home Assistant dashboards
    • More information can be found in MOCREO SW2 Water Leak Sensor

NutriChef

PWIRBBQ80
NutriChef Smart Bluetooth BBQ Grill Thermometer PWIRBBQ80
temperature probe
rssi
PWIRBBQ80
Notes:
  • This sensor is a rebranded Inkbird iBBQ sensor and will be recognized in Home Assistant as such.

Oral-B

IO Series 7
Oral-B IO Series 7
toothbrush *
rssi
IO Series 7
Notes:
  • toothbrush The toothbrush has several attributes that gives additional information. state can be one of the following
    • unknown
    • initializing
    • idle
    • running
    • charging
    • setup
    • flight menu
    • selection menu
    • final test
    • pcb_test
    • sleeping
    • transport
    mode may be one of the following
    • off
    • daily clean
    • sensitive
    • gum care
    • whiten
    • intense
    • settings
    sector may be one of the following
    • sector 1 till 8
    • unknown 1 till 5
    • last_sector
    • no_sector
    pressure may be one of the following
    • normal
    • button pressed
    • high
    • unknown pressure (with number)
SmartSeries 7000
Oral-B SmartSeries 7000
toothbrush *
rssi
SmartSeries 7000
Notes:
  • toothbrush The toothbrush has several attributes that gives additional information. state can be one of the following
    • unknown
    • initializing
    • idle
    • running
    • charging
    • setup
    • flight menu
    • selection menu
    • final test
    • pcb_test
    • sleeping
    • transport
    mode may be one of the following
    • off
    • daily clean
    • sensitive
    • massage
    • whitening
    • deep clean
    • tongue cleaning
    • turbo
    • unknown
    sector may be one of the following
    • sector 1 till 8
    • unknown 1 till 5
    • last_sector
    • no_sector
    pressure may be one of the following
    • normal
    • button pressed
    • high
    • unknown pressure (with number)

Oras

Faucet
Oras Electra Washbasin Faucet
rssi
battery
Faucet
Active Scan required
true

Petoneer

SU001-T
Petoneer Smart Odor Eliminator Pro SU001-T
switch
motion
battery
rssi
SU001-T
Encrypted Advertisements
true

Qingping

CGC1
Bluetooth alarm clock
temperature
humidity
battery *
rssi
CGC1
Encrypted Advertisements
Yes (Xiaomi MiBeacon advertisement)
Notes:
  • battery For battery level, we do not have accurate periodicity information yet.
  • The sensor sends BLE advertisements in Xiaomi MiBeacon format and Qingping format, but only MiBeacon format is supported currently.
  • Xiaomi MiBeacon advertisements are most likely encrypted.
  • If you have information about update frequency, encryption key requirement, and/or a log with report_unknown: 'qingping', we can improve the documentation and implement qingping format support without encryption. Please open an issue with this information.
CGD1
Cleargrass CGD1 alarm clock
temperature
humidity
battery *
rssi
CGD1
Segment LCD
Encrypted Advertisements
Yes (Xiaomi MiBeacon advertisement)
Broadcast Rate
~1/10min.
Notes:
  • battery For battery level, we do not have accurate periodicity information yet.
  • The sensor sends BLE advertisements in Xiaomi MiBeacon format and Qingping format.
  • Xiaomi MiBeacon advertisements are most likely encrypted.
  • Qingping advertisements are not encrypted.
CGDK2
Temp & RH Monitor Lite
temperature
humidity
battery
voltage
rssi
CGDK2
Round body, E-Ink
Encrypted Advertisements
true
Broadcast Rate
~1/10min.
custom firmware
Notes:
  • Custom firmware broadcast temperature, humidity, battery voltage and battery level in percent. Broadcast interval can be set by the user and encryption can be used as an option.
CGDN1
Qingping Air Monitor Lite
temperature
humidity
CO2
PM2.5
PM10
rssi
CGDN1
Notes:
  • BLE is only working when it is paired with a companion app.
CGG1
Hygro thermometer
temperature
humidity
battery
rssi
CGG1
Round body, E-Ink
Broadcast Rate
~20/min.
Notes:
  • There are three versions of the CGG1. The older CGG1 doesn’t have a logo on the back (right picture) CGG1.
  • broadcasts about 20 readings per minute, although exceptions have been reported with 1 reading per 10 minutes.
CGG1-M
Hygro thermometer
temperature
humidity
battery
voltage *
rssi
CGG1-M
Round body, E-Ink
Encrypted Advertisements
true
Broadcast Rate
~20/min.
custom firmware
Notes:
  • voltage Battery voltage is only available with custom firmware.
  • There are three versions of the CGG1. The CGG1-M has a qingping logo at the back (left picture) CGG1
  • broadcasts about 20 readings per minute, although exceptions have been reported with 1 reading per 10 minutes.
  • Custom firmware broadcast temperature, humidity, battery voltage and battery level in percent. Broadcast interval can be set by the user and encryption can be used as an option.
CGH1
Window Door/Sensor
opening
battery *
status *
rssi
CGH1
Encrypted Advertisements
true
Notes:
  • battery For battery level, we do not have accurate periodicity information yet.
  • status The opening entity has an extra attribute “status”, which can have the following values:
    • opened
    • closed
    • closing timeout
    • device reset
CGP1W
Cleargrass indoor weather station with Atmospheric pressure measurement
temperature
humidity
pressure
battery *
rssi
CGP1W
Notes:
  • battery For battery level, we do not have accurate periodicity information yet.

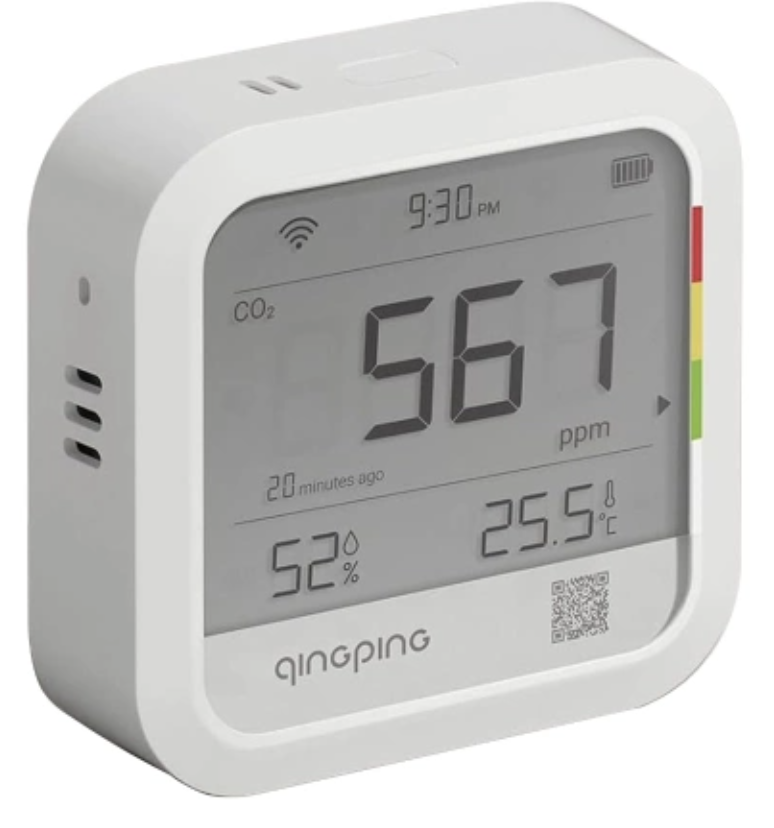

CGP22C
CO2 detector
temperature
humidity
battery
co2
rssi
CGP22C
Rounded square body, LCD display
CGP23W
Temp & RH Barometer Pro
temperature
humidity
battery
pressure
rssi
CGP23W
Rounded square body, LCD display
CGPR1
Motion and ambient light sensor
illuminance *
light *
motion *
battery
rssi
CGPR1
Encrypted Advertisements
See Notes
Broadcast Rate
See Notes
Notes:
  • illuminance is measured in lux.
  • light Qingping advertisements send a message with light status (dark/light). For Xiaomi MiBeacon advertisements, 100 lux is assumed to be the limit for dark/light.
  • motion Motion state is ‘motion detected’ or ‘clear’.
    • This sensor sends advertisements in Xiaomi MiBeacon format when connected to MiHome. In this case, communication is encrypted, so it requires an encryption key to be set in the configuration options. If it is not connected to MiHome, it will broadcast advertisements in Qingping format. This advertisement format is not encrypted, so it won’t require an encryption key. - Switching to Qingping mode is done by pressing the button for a very long time until the LED stops flashing. - In Xiaomi MiBeacon mode, illuminance is broadcasted upon every 10 minutes and when motion is detected. Motion state is broadcasted when motion is detected. Additionally, motion clear messages are broadcasted at 1, 2, 5, 10, 20 and 30 minutes after the last motion. - In Qingping mode, broadcast rate of illumination and battery is every second. - You can use the reset_timer option if you want to use a different time to set the sensor to motion clear.

Radius Networks

AltBeacon
AltBeacon
rssi
measured power
uuid
mac
major
minor
AltBeacon
Active Scan required
true
Notes:
  • AltBeacon is not a device, but a protocol developed by AltBeacon on which beacons work.
  • It should not be used for tracking MAC addresses, they can be dynamic, there is a Beacon UUID parameter for this.

rbaron

b-parasite
BLE soil moisture sensor
temperature
moisture
humidity
illuminance *
voltage *
rssi
b-parasite
Plant sensor
Broadcast Rate
configurable, ~5-10/min
Notes:
  • voltage Voltage of the battery
  • illuminance Only available for v1.1.0 and upwards devices
  • This device is Open Source Hardware

Relsib

EClerk-Eco-RHTC-0-0-0
Hygro thermometer with CO2 sensor
temperature
humidity
CO2
battery *
rssi
EClerk-Eco-RHTC-0-0-0
Rounded square body, segment screen
Notes:
  • battery Will report 100% battery level when power adapter attached.
  • Works only for EClerk-Eco-RHTC-0-0-0 - one with CO2 sensor and without relay.
WH52
Portable temperature humidity sensor
temperature
humidity
rssi
WH52
Portable temperature humidity sensor
WT51
Portable temperature sensor
temperature
rssi
WT51
Portable temperature sensor

Ruuvitag

Ruuvitag
Ruuvitag
temperature
humidity
pressure
motion *
acceleration
voltage
battery
rssi
Ruuvitag
Round body
Notes:
  • motion is reported in HA when the motion counter is increased between two advertisements.
  • If some of these sensors are not updating, make sure you use the latest firmware (v5).
  • You can use the reset_timer option to set the time after which the motion sensor will return to motion clear, but it might be overruled by the advertisements from the sensor.

Sensirion

SCD4x CO₂ gadget
Sensirion SCD4x CO₂ gadget
temperature
humidity
CO2
rssi
SCD4x CO₂ gadget
Notes:
  • BLE monitor doesn’t support any of the other Bluetooth features (LED control, download of past data etc.), due to the passive way of getting the data.
  • The protocol is publicly available at Sensirion/arduino-ble-gadget and used to feed data into the Sensirion MyAmbience CO2 App (Android + iOS)
  • The same protocol is used by other Sensirion BLE devices as well, but these have not been implemented yet. If you want support for other Sensirion devices, create a new issue.
SHT4x gadget
Sensirion SHT4x gadget
temperature
humidity
rssi
SHT4x gadget
Notes:
  • BLE monitor doesn’t support any of the other Bluetooth features (LED control, download of past data etc.), due to the passive way of getting the data.
  • The protocol is publicly available at Sensirion/arduino-ble-gadget and used to feed data into the Sensirion MyAmbience App (Android + iOS)
  • The same protocol is used by other Sensirion BLE devices as well, but these have not been implemented yet. If you want support for other Sensirion devices, create a new issue.

SensorPush

SensorPush HT.w
Temperature and Humidity Sensor
temperature
humidity *
rssi
SensorPush HT.w
Broadcast Rate
One reading per minute.
Notes:
  • humidity Typical RH accuracy of the sensor is +/-1.5%RH from 20%-80%
  • Sensor must be first paired to the SensorPush app to activate it. Following this activation, it can be used with Home Assistant with or without further interaction with the SensorPush app.
SensorPush HTP.xw
Temperature, Humidity, and Barometric Pressure Sensor
temperature
humidity *
pressure *
rssi
SensorPush HTP.xw
Broadcast Rate
One reading per minute.
Notes:
  • humidity Typical RH accuracy of the sensor is +/-1.5%RH from 20%-80%
  • pressure Provided barometric pressure readings by this library are the raw “station” pressure. They would need corrected for altitude to match the readings typically provided by meteorolgists. This correction is available in the SensorPush app and may be added in future versions here.
  • Sensor must be first paired to the SensorPush app to activate it. Following this activation, it can be used with Home Assistant with or without further interaction with the SensorPush app.

Senssun

IF_B7
Senssun Smart Scale
weight
impedance
rssi
IF_B7

SmartDry

Cloth Dryer
SmartDry Cloth Dryer
temperature
humidity
voltage
battery
switch
shake
rssi
Cloth Dryer
rectangular body

Switchbot

Meter TH plus
Thermometer and Hygrometer
temperature
humidity
battery
rssi
Meter TH plus
Rounded square body, LCD screen
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.
Meter TH S1
Thermometer and Hygrometer
temperature
humidity
battery
rssi
Meter TH S1
Rounded square body, LCD screen
Active Scan required
true
Notes:
  • actve scan needs to be enabled in the BLE Monitor settings for this sensor to work.

Teltonika

Blue Coin T
Blue Coin T
temperature
rssi
Blue Coin T
Round coin, no screen
Blue Puck RHT
Blue Puck RHT
temperature
humidity
rssi
Blue Puck RHT
Round puck, no screen
Blue Puck T
Blue Puck T
temperature
rssi
Blue Puck T
Round puck, no screen

Thermobeacon (Thermoplus, Brifit, Oria)

T201
Thermometer Hygrometer
temperature
humidity
battery
rssi
T201
Square body, no screen
Notes:
  • Sold under different brands, e.g. Thermoplus, Brifit, Oria.
Thermobeacon Lanyard Hygrometer
Lanyard Hygrometer
temperature
humidity
battery
rssi
Thermobeacon Lanyard Hygrometer
Square body, no screen
Notes:
  • Sold under different brands, e.g. Thermoplus, Brifit, Oria.
Thermobeacon Mini Hygrometer
Mini Hygrometer
temperature
humidity
battery
rssi
Thermobeacon Mini Hygrometer
Round body, no screen
Notes:
  • Sold under different brands, e.g. Thermoplus, Brifit, Oria.
Thermobeacon Smart Hygrometer
Smart Hygrometer
temperature
humidity
battery
rssi
Thermobeacon Smart Hygrometer
Rounded square body, LCD screen
Notes:
  • Sold under different brands, e.g. Thermoplus, Brifit, Oria.

Thermopro

TP357
ThermoPro TP357 Bluetooth Digital Indoor Hygrometer Thermometer
temperature
humidity
rssi
TP357
Rounded square body, LCD screen
Broadcast Rate
2 to 3 seconds
TP359
ThermoPro TP359 Bluetooth Wireless Thermometer Hygrometer and Humidity Monitor
temperature
humidity
rssi
TP359
Rounded square body, LCD screen
Broadcast Rate
2 seconds

Tilt

Tilt Hydrometer and thermometer
Tilt
temperature
gravity
rssi
Tilt Hydrometer and thermometer
Notes:
  • Tilt is using the iBeacon protocol to send its data. It is therefore added in BLE monitor based on its UUID, not on its MAC address. It is unknown whether the MAC address is fixed or dynamic. The UUID is used to determine the color of the Tilt sensor, based on the information on this page. The color can be found in the device model in HA.

VegTrug

GCLS002 / HHCCJCY09
Grow Care Garden / Flower Care Max
temperature
moisture
illuminance
conductivity
battery
rssi
GCLS002 / HHCCJCY09

Viomi

V-SK152
Smart Kettle
temperature
switch
status *
rssi
V-SK152
Broadcast Rate
~2/min.
Notes:
  • status The switch entity has an extra status attribute, with the following values:
    • kettle is idle
    • kettle is heating
    • warming function active with boiling
    • warming function active without boiling

Xiaogui

TZC4
Smart Bluetooth Body Fat Scale
weight *
non-stabilized weight *
impedance *
rssi
TZC4
Notes:
  • weight is only reported after the scale is stabilized
  • impedance is only reported after the scale is stabilized
  • non-stabilized weight reporting all weight measurements
  • This scale is a clone of the Xiaomi Mi Scale (V2), but is using a different BLE advertisement format.
  • For additional data like BMI, viscaral fat, etc. you can use e.g. the bodymiscale custom integration.
  • If you want to split your measurements into different persons, you can use this template sensor

Xiaomi

HHCCPOT002
RoPot smart flowerpot
moisture
conductivity
battery *
rssi
HHCCPOT002
Broadcast Rate
~2/min.
Notes:
  • battery No battery info with firmware v1.2.6.
LYWSD02
Temperature and Humidity sensor
temperature
humidity
battery *
rssi
LYWSD02
Rectangular body, E-Ink
Broadcast Rate
~20/min.
Notes:
  • battery is available for firmware version 1.1.2_00085 and later.
LYWSD02MMC
Temperature and Humidity Monitor Clock
temperature
humidity
battery
rssi
LYWSD02MMC
Rectangular body, E-Ink
Encrypted Advertisements
true
LYWSD03MMC
Hygro thermometer
temperature
humidity
battery
voltage *
switch *
opening *
rssi
LYWSD03MMC
Small square body, segment LCD
Encrypted Advertisements
Yes (original firmware), optional with pvvx firmware
Broadcast Rate
1/10min. (battery level ~1/hr.)*
custom firmware
Notes:
  • voltage battery voltage is only available with custom firmware
  • switch The switch sensor is only available with custom firmware (pvvx) and is disabled by default. It represents the state of the Reed Switch. You can enable the switch sensor by going to configuration, integrations, select devices on the BLE monitor integration tile and select your device. Click on the +1 disabled entity to show the disabled sensor and select the disabled entity. Finally, click on Enable entity to enable it. This switch sensor can be used for a temperature or humidity trigger, for use as hygrostat or thermostat (depending on settings). More information can be found here on the pvvx website
  • opening The opening sensor is only available with custom firmware and is disabled by default. You can enable the opening sensor by going to configuration, integrations, select devices on the BLE monitor integration tile and select your device. Click on the +1 disabled entity to show the disabled sensor and select the disabled entity. Finally, click on Enable entity to enable it. More information about the use of this opening sensor can be found on here on the pvvx website
  • Both custom firmwares broadcast temperature, humidity, battery voltage and battery level in percent. Broadcast interval can be set by the user and encryption can be used as an option. BLE monitor supports all possible broadcast types that can be selected in the TelinkMiFlasher tool.
LYWSDCGQ
Hygro thermometer
temperature
humidity
battery
rssi
LYWSDCGQ
Round body, segment LCD
Broadcast Rate
~20/min.
M1S-T500
Mi Electric Toothbrush T500
toothbrush *
battery
score *
counter *
rssi
M1S-T500
Notes:
  • toothbrush The toothbrush sensor has two attributes, score and counter
  • counter After starting the toothbrush, the counter will count the time you used your toothbrush
  • score After finishing toothbrushing, the toothbrush will report a score
  • Needs to be setup & paired with Mi Home first time, else it will only send empty payload
MCCGQ02HL
Mijia Window/Door Sensor 2
battery
opening
light
status *
rssi
MCCGQ02HL
Encrypted Advertisements
true
Broadcast Rate
battery level ~1/day
Notes:
  • status The opening entity has an extra attribute “status”, which can have the following values:
    • opened
    • closed
    • closing timeout
    • device reset
Mi Band 4 and 5
Mi Band
heart rate
steps
rssi
Mi Band 4 and 5
Oval Watch
Active Scan required
true
Notes:
  • The Mi Band also reports steps, but this requires you to turn on active scan.

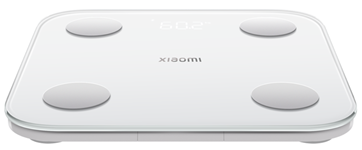

MJTZC01YM
Body Composition Scale S400
weight
impedance
impedance low
heart rate
profile id
rssi
MJTZC01YM
MJWSD05MMC
Mijia Smart Temperature and Humidity Monitor 3
temperature
humidity
battery
rssi
MJWSD05MMC
Rectangular body, E-Ink
Encrypted Advertisements
true
MJWSD06MMC
Mijia Smart Temperature and Humidity Monitor 3 Mini
temperature
humidity
battery
rssi
MJWSD06MMC
Small square body, segment LCD
Encrypted Advertisements
true
Broadcast Rate
once per 2 minutes
MJYD02YL
Motion Activated Night Light
battery
motion
light
rssi
MJYD02YL
Encrypted Advertisements
true
Broadcast Rate
See Notes
Notes:
  • Light state is broadcasted once every 5 minutes when no motion is detected, when motion is detected the sensor also broadcasts the light state. Motion state is broadcasted when motion is detected, but is also broadcasted once per 5 minutes. If this message is within 30 seconds after motion, it’s broadcasting motion detected, if it’s after 30 seconds, it’s broadcasting motion clear. Additionally, motion clear messages are broadcasted at 2, 5, 10, 20 and 30 minutes after the last motion.
  • You can use the reset_timer option if you want to use a different time to set the sensor to motion clear.
  • Battery is broadcasted once every 5 minutes.
MJZNMSQ01YD
Xiaomi Door Lock Youth Edition
fingerprint *
lock *
battery
result *
key id *
action *
method *
error *
timestamp *
rssi
MJZNMSQ01YD
Encrypted Advertisements
Yes, see notes
Notes:
  • fingerprint The fingerprint sensor is On if the fingerprint scan was successful, otherwise it is Off The fingerprint entity has two extra attributes, result and key id.
  • result result shows the result of the last fingerprint reading and can have the following values:
    • match successful
    • match failed
    • timeout
    • low quality (too light, fuzzy)
    • insufficient area
    • skin is too dry
    • skin is too wet
  • key id key id is an id number. For the fingerprint sensor, it can also be administrator or unknown operator
  • lock The state of the lock depends on the last action. The lock entity has five extra attributes, action, method, error and key id and timestamp
  • action action shows the last change in of the lock and can have the following values:
    • unlock outside the door
    • lock
    • turn on anti-lock
    • turn off anti-lock
    • unlock inside the door
    • lock inside the door
    • turn on child lock
    • turn off child lock
    • lock outside the door
    • abnormal
  • method method shows the last used locking mechanism and can have the following values:
    • unlock outside the door
    • lock
    • bluetooth
    • password
    • biometrics
    • key
    • turntable
    • nfc
    • one-time password
    • two-step verification
    • Homekit
    • coercion
    • manual
    • automatic
    • abnormal
  • error The error state of the lock
  • timestamp The timestamp of the latest lock change
  • At the moment you can only get the encryption key with method 4 (intercepting the MiHome application traffic) as described in the FAQ. Search for /device/blelockbind or /v2/device/ble_secure_bind endpoint. Method 3 (MiHome mod) is currently being worked on and will support extracting the encryption key for this device in the next release of MiHome mod. For further information, see this issue
MMC-W505
Digital Thermometer
temperature
rssi
MMC-W505
Body thermometer
MSB17
Temperature/Humidity Sensor
temperature
humidity
battery
rssi
MSB17
rounded square display
Encrypted Advertisements
true
PTX
BLE wireless switch
one btn switch *
battery
rssi
PTX
Encrypted Advertisements
true
Notes:
  • one btn switch returns ‘single press’, ‘double press’ or ‘long press’
  • The switch sensor state will return to no press after the time set with the reset_timer option. It is advised to change the reset time to 1 second (default = 35 seconds).
RTCGQ02LM
Mi Motion Sensor 2
light
motion *
button *
battery
rssi
RTCGQ02LM
Encrypted Advertisements
true
Broadcast Rate
See notes
Notes:
  • motion Light state is broadcasted upon a change in light in the room and is also broadcasted at the same time as motion is detected. The sensor does not broadcast motion clear advertisements. It is therefore required to use the reset_timer option with a value that is not 0.
  • button The sensor also broadcasts single press if you press the button. After each button press, the sensor state shortly shows single press and will return to no press after 1 second. The sensor has an attribute which shows the last button press. You can use the state change event to trigger an automation in Home Assistant. Battery is broadcasted once every few hours.
SJWS01LM
Smart Water Leak Sensor
moisture detected
button
battery
rssi
SJWS01LM
Encrypted Advertisements
true
T700
Mi Electric Toothbrush T700
toothbrush *
battery
score *
rssi
T700
Encrypted Advertisements
true
Notes:
  • toothbrush The toothbrush sensor has one attribute score
  • counter After starting the toothbrush, the counter will count the time you used your toothbrush
  • score After finishing toothbrushing, the toothbrush will report a score
WX08ZM
Mija Mosquito Repellent
consumable
battery
switch
rssi
WX08ZM
Broadcast Rate
~50/min.
XMMF01JQD
Smart Mijia Magic Cube
button *
rssi
XMMF01JQD
Encrypted Advertisements
true
Notes:
  • button Possible states are ‘left’ and ‘right’, corresponding to the direction you rotate the cube. No edge information is available, only the direction, as this edge info is only available after connecting to the cube. This is not supported in BLE monitor.
  • After each rotation, the sensor state shows the direction. It will return to no press after the time set with the reset_timer option (default = 35 seconds).
  • The sensor has an attribute which shows the last button press. You can use the state change event to trigger an automation in Home Assistant.
XMPIRO2SXS
Xiaomi Human Body Sensor 2S
illuminance *
motion *
battery
rssi
XMPIRO2SXS
Encrypted Advertisements
true
Notes:
  • illuminance is measured in lux.
  • motion Motion state is ‘motion detected’ or ‘clear’.
    • You can use the reset_timer option if you want to use a different time to set the sensor to motion clear.
XMTZC01HM, XMTZC04HM
Mi Smart Scale 1 / Mi Smart Scale 2
weight *
non-stabilized weight *
weight removed
rssi
XMTZC01HM, XMTZC04HM
Notes:
  • weight is only reported after the scale is stabilized
  • non-stabilized weight is reporting all weight measurements
  • For additional data like BMI, viscaral fat, etc. you can use e.g. the bodymiscale custom integration.
  • If you want to split your measurements into different persons, you can use this template sensor
  • https://community.home-assistant.io/t/integrating-xiaomi-mi-scale/9972/533?u=ernst
XMTZC02HM, XMTZC05HM, NUN4049CN
Mi Body Composition Scale 2 / Mi Body Fat Scale
weight *
non-stabilized weight *
stabilized weight *
weight removed
impedance
rssi
XMTZC02HM, XMTZC05HM, NUN4049CN
Notes:
  • weight is only reported after both the scale is stabilized and the impedance has been sent by the scale (wait for the white line on the scale to start flashing). The weight sensor and the impedance sensor always correspond to the same measurement.
  • stabilized weight is updated, even if the impedance has not been calculated and send by the scale. This sensor is updated slightly before the weight sensor, even if you step off the scale before the white line starts flashing, but the weight measurement does not always correspond to the impedance measurement.
  • non-stabilized weight this sensor is reporting all weight measurements
  • For additional data like BMI, viscaral fat, etc. you can use e.g. the bodymiscale custom integration.
  • If you want to split your measurements into different persons, you can use this template sensor
XMWSDJ04MMC
Electronic Thermometer and Hygrometer
temperature
humidity
battery
rssi
XMWSDJ04MMC
Small square body, EInk version
Encrypted Advertisements
true
Broadcast Rate
Once in 5 minutes.
XMWXKG01LM
Mijia wireless switch
one btn switch *
battery
rssi
XMWXKG01LM
round switch
Encrypted Advertisements
true
Notes:
  • one btn switch returns ‘single press’, ‘double press’ or ‘long press’
  • The switch sensor state will return to no press after the time set with the reset_timer option. It is advised to change the reset time to 1 second (default = 35 seconds).
XMWXKG01YL
Smart Switch (two button version)
two btn switch left *
two btn switch right *
rssi
XMWXKG01YL
Encrypted Advertisements
Probably (not confirmed yet)
Notes:
  • two btn switch left returns ‘short press’, ‘double press’ or ‘long press’
  • two btn switch right returns ‘short press’, ‘double press’ or ‘long press’
  • The switch sensor state will return to no press after the time set with the reset_timer option. It is advised to change the reset time to 1 second (default = 35 seconds).
XMZNMS04LM
Smart Door Lock E
fingerprint *
lock *
battery
result *
key id *
action *
method *
error *
timestamp *
rssi
XMZNMS04LM
Notes:
  • fingerprint The fingerprint sensor is On if the fingerprint scan was successful, otherwise it is Off The fingerprint entity has two extra attributes, result and key id.
  • result result shows the result of the last fingerprint reading and can have the following values:
    • match successful
    • match failed
    • timeout
    • low quality (too light, fuzzy)
    • insufficient area
    • skin is too dry
    • skin is too wet
  • key id key id is an id number. For the fingerprint sensor, it can also be administrator or unknown operator
  • lock The state of the lock depends on the last action. The lock entity has five extra attributes, action, method, error and key id and timestamp
  • action action shows the last change of the lock and can have the following values:
    • unlock outside the door
    • lock
    • turn on anti-lock
    • turn off anti-lock
    • unlock inside the door
    • lock inside the door
    • turn on child lock
    • turn off child lock
    • lock outside the door
    • abnormal
  • method method shows the last used locking mechanism and can have the following values:
    • unlock outside the door
    • lock
    • bluetooth
    • password
    • biometrics
    • key
    • turntable
    • nfc
    • one-time password
    • two-step verification
    • Homekit
    • coercion
    • manual
    • automatic
    • abnormal
  • error The error state of the lock
  • timestamp The timestamp of the latest lock change
XMZNMS08LM
Smart Door Lock 1S
battery
door *
lock *
key id *
action *
door action *
method *
error *
timestamp *
rssi
XMZNMS08LM
Encrypted Advertisements
true
Broadcast Rate
Battery state can take up to several hours before it is updated.
Notes:
  • lock The state of the lock depends on the last action. The lock entity has five extra attributes, action, method, error and key id and timestamp
  • action action shows the last change of the lock (displayed as an attribute of the lock sensor) and can have the following values:
    • unlock outside the door
    • lock
    • turn on anti-lock
    • turn off anti-lock
    • unlock inside the door
    • lock inside the door
    • turn on child lock
    • turn off child lock
    • lock outside the door
  • method method shows the last used locking mechanism (displayed as an attribute of the lock sensor) and can have the following values:
    • unlock outside the door
    • lock
    • bluetooth
    • password
    • biometrics
    • key
    • turntable
    • nfc
    • one-time password
    • two-step verification
    • Homekit
    • coercion
    • manual
    • automatic
    • abnormal
  • error The error state of the lock (displayed as an attribute of the lock sensor)
  • key id key id is an id number, displayed as an attribute of the lock sensor).
  • timestamp The timestamp of the latest lock change (displayed as an attribute of the lock sensor)
  • door The door entity has one extra attributes door action.
  • door action door action shows the last change in of the door state (displayed as an attribute of the door sensor) and can have the following values:
    • open the door
    • close the door
    • timeout, not closed
    • knock on the door
    • pry the door
    • door stuck
YM-K1501
Mijia Smart kettle
temperature
switch
status *
rssi
YM-K1501
Notes:
  • status The switch entity has an extra status attribute, with the following values:
    • kettle is idle
    • kettle is heating
    • warming function active with boiling
    • warming function active without boiling

Xiaomi Aqara

ZNMS16LM
Lock N100
fingerprint *
door *
lock *
battery
result *
key id *
action *
door action *
method *
error *
timestamp *
rssi
ZNMS16LM
Notes:
  • fingerprint The fingerprint sensor is On if the fingerprint scan was succesaful, otherwise it is Off The fingerprint entity has two extra attributes, result and key id.
  • result result shows the result of the last fingerprint reading and can have the following values:
    • match successful
    • match failed
    • timeout
    • low quality (too light, fuzzy)
    • insufficient area
    • skin is too dry
    • skin is too wet
  • key id key id is an id number. For the fingerprint sensor, it can also be administrator or unknown operator
  • lock The state of the lock depends on the last action. The lock entity has five extra attributes, action, method, error and key id and timestamp
  • action action shows the last change of the lock (displayed as attribute of the lock sensor) and can have the following values:
    • unlock outside the door
    • lock
    • turn on anti-lock
    • turn off anti-lock
    • unlock inside the door
    • lock inside the door
    • turn on child lock
    • turn off child lock
    • lock outside the door
    • abnormal
  • method method shows the last used locking mechanism (displayed as attribute of the lock sensor) and can have the following values:
    • unlock outside the door
    • lock
    • bluetooth
    • password
    • biometrics
    • key
    • turntable
    • nfc
    • one-time password
    • two-step verification
    • Homekit
    • coercion
    • manual
    • automatic
    • abnormal
  • error The error state of the lock (displayed as attribute of the lock sensor)
  • timestamp The timestamp of the latest lock change (displayed as attribute of the lock sensor)
  • door The door entity has one extra attributes door action.
  • door action door action shows the last change in of the door state (displayed as attribute of the door sensor) and can have the following values:
    • open the door
    • close the door
    • timeout, not closed
    • knock on the door
    • pry the door
    • door stuck
  • Only supports the Bluetooth version (MiHome version)
ZNMS17LM
Lock N200
fingerprint *
door *
lock *
battery
result *
key id *
action *
door action *
method *
error *
timestamp *
rssi
ZNMS17LM
Notes:
  • fingerprint The fingerprint sensor is On if the fingerprint scan was successful, otherwise it is Off The fingerprint entity has two extra attributes, result and key id.
  • result result shows the result of the last fingerprint reading and can have the following values:
    • match successful
    • match failed
    • timeout
    • low quality (too light, fuzzy)
    • insufficient area
    • skin is too dry
    • skin is too wet
  • key id key id is an id number. For the fingerprint sensor, it can also be administrator or unknown operator
  • lock The state of the lock depends on the last action. The lock entity has five extra attributes, action, method, error and key id and timestamp
  • action action shows the last change of the lock (displayed as attribute of the lock sensor) and can have the following values:
    • unlock outside the door
    • lock
    • turn on anti-lock
    • turn off anti-lock
    • unlock inside the door
    • lock inside the door
    • turn on child lock
    • turn off child lock
    • lock outside the door
    • abnormal
  • method method shows the last used locking mechanism (displayed as attribute of the lock sensor) and can have the following values:
    • unlock outside the door
    • lock
    • bluetooth
    • password
    • biometrics
    • key
    • turntable
    • nfc
    • one-time password
    • two-step verification
    • Homekit
    • coercion
    • manual
    • automatic
    • abnormal
  • error The error state of the lock (displayed as attribute of the lock sensor)
  • timestamp The timestamp of the latest lock change (displayed as attribute of the lock sensor)
  • door The door entity has one extra attributes door action.
  • door action door action shows the last change in of the door state (displayed as attribute of the door sensor) and can have the following values:
    • open the door
    • close the door
    • timeout, not closed
    • knock on the door
    • pry the door
    • door stuck
  • Only supports the Bluetooth version (MiHome version)

Xiaomi Lockin

DSL-C08
Lockin Q2
lock *
key id *
action *
method *
error *
armed away *
timestamp *
battery
rssi
DSL-C08
Encrypted Advertisements
Yes, see notes
Notes:
  • lock The state of the lock depends on the last action. The lock entity has five extra attributes, action, method, error and key id and timestamp
  • key id key id is an id number. For the fingerprint sensor, it can also be administrator or unknown operator
  • action action shows the last change in of the lock and can have the following values:
    • unlock outside the door
    • lock
    • turn on anti-lock
    • turn off anti-lock
    • unlock inside the door
    • lock inside the door
    • turn on child lock
    • turn off child lock
    • lock outside the door
    • abnormal
  • method method shows the last used locking mechanism and can have the following values:
    • unlock outside the door
    • lock
    • bluetooth
    • password
    • biometrics
    • key
    • turntable
    • nfc
    • one-time password
    • two-step verification
    • Homekit
    • coercion
    • manual
    • automatic
    • abnormal
  • error The error state of the lock
  • timestamp The timestamp of the latest lock change
  • armed away armed away Inside the locked device, this event is output from the door ‘up’ handle.
  • Only supports the Bluetooth version (MiHome version)

Xiaomi/Honeywell

JQJCY01YM
Formaldehyde Sensor
temperature
humidity
battery
formaldehyde *
rssi
JQJCY01YM
OLED display
Broadcast Rate
~50/min.
Notes:
  • formaldehyde measured in (mg/m³)
JTYJGD03MI
Smoke Detector (Bluetooth)
smoke
button
battery
rssi
JTYJGD03MI
Smoke detector
Notes:
  • Only the Bluetooth model is supported

Xiaomi/MiaoMiaoCe

MHO-C303
Alarm clock
temperature
humidity
battery
rssi
MHO-C303
Rectangular body, E-Ink
Broadcast Rate
~20/min.
MHO-C401
Alarm clock
temperature
humidity
battery
voltage
rssi
MHO-C401
Small square body, E-Ink display
Encrypted Advertisements
true
Broadcast Rate
1/10min. (battery level 1/hr.)
custom firmware
Notes:
  • Custom firmware’s broadcast temperature, humidity, battery voltage and battery level in percent. Broadcast interval can be set by the user and encryption can be used as an option. BLE monitor will automatically use the advertisement type with the highest accuracy, when setting the firmware to broadcast all advertisement types.
MMC-T201-1
Digital Baby Thermometer
temperature *
battery
rssi
MMC-T201-1
Broadcast Rate
15-20/min.
Notes:
  • temperature DISCLAIMER - The sensor sends two temperatures in the BLE advertisements, that are converted to a body temperature with a certain algorithm in the original app. We tried to reverse engineering this relation, but we were only able to approximate the relation in the range of 36.5°C - 37.9°C at this moment. It has not been calibrated at elevated body temperature (e.g. if someone has a fever), so measurements displayed in Home Assistant might be different (wrong) compared to those reported in the app. It is therefore advised NOT to rely on the measurements in BLE monitor if you want to monitor your or other peoples body temperature / health). If you have additional measurements, especially outside the investigated range, please report them in this issue.
  • The calculated body temperature is displayed in BLE Monitor

Xiaomi/Philips

MUE4094RT
Bluetooth Night Light
motion *
rssi
MUE4094RT
Notes:
  • motion Motion detection (only motion detected, no light or battery state). The sensor does not broadcast motion clear advertisements. It is therefore required to use the reset_timer option with a value that is not 0.

Yeelight

YLAI003
Smart Wireless Switch
button *
battery
rssi
YLAI003
Encrypted Advertisements
true
Notes:
  • button press types are ‘single press’, ‘double press’ or ‘long press’
  • After each button press, the sensor state shows the type of press. It will return to no press after the time set with the reset_timer option.
  • It is advised to change the reset time to 1 second (default = 35 seconds).
  • The sensor has an attribute which shows the last button press. You can use the state change event to trigger an automation in Home Assistant.
YLKG07YL_YLKG08YL
Rotating Dimmer
dimmer *
rssi
YLKG07YL_YLKG08YL
Encrypted Advertisements
true
Notes:
  • dimmer types are ‘rotate’, ‘rotate (presses)’, ‘short press*’, ‘long press’. For rotation, it reports the rotation direction (left, right) and how far you rotate (number of steps). For short press it reports how many times you pressed the dimmer. For long press it reports the time (in seconds) you pressed the dimmer.
  • The dimmer sensor state will return to no press after the time set with the reset_timer option
  • It is advised to change the reset time to 1 second (default = 35 seconds).
YLYB01YL-BHFRC
Bathroom Heater Remote Control
bathroom heater remote *
button *
rssi
YLYB01YL-BHFRC
Encrypted Advertisements
Partly
Notes:
  • bathroom heater remote button pressed options are ‘heat’, ‘air exchange’, ‘dry’, ‘fan’, ‘swing’, ‘speed -‘, ‘speed +’, ‘stop’ or ‘light toggle’
  • button press types are ‘short press’ or ‘long press’
  • The state of the remote sensor shows the remote button being pressed, the attributes shows the type of press.
  • It will return to ‘no press’ after the time set with the reset_timer option.
  • It is advised to change the reset time to 1 second (default = 35 seconds).
YLYK01YL
Remote Control
remote *
remote single press
remote long press
rssi
YLYK01YL
Encrypted Advertisements
Partly
Notes:
  • remote button pressed options are ‘on’, ‘off’, ‘color temperature’, ‘+’, ‘M’, ‘-‘
  • The state of the remote sensor shows the combination of both, the attributes shows the button being used and the type of press individually.
  • It will return to ‘no press’ after the time set with the reset_timer option.
  • It is advised to change the reset time to 1 second (default = 35 seconds).
  • Additionally, two binary sensors are generated (one for ‘short press’, one for ‘long press’), which is ‘True’ when pressing ‘on’, ‘+’ or ‘-‘ and ‘False’ when pressing ‘off’.
YLYK01YL-FANCL
Fan Remote Control
fan remote *
button *
rssi
YLYK01YL-FANCL
Encrypted Advertisements
Partly
Notes:
  • fan remote button pressed options are ‘fan toggle’, ‘light toggle’, ‘wind speed’, ‘wind mode’, ‘brightness’, ‘color temperature’
  • button press types are ‘short press’ or ‘long press’
  • The state of the remote sensor shows the combination of both, the attributes shows the button being used and the type of press individually.
  • It will return to ‘no press’ after the time set with the reset_timer option.
  • It is advised to change the reset time to 1 second (default = 35 seconds)
YLYK01YL-VENFAN
Ventilator Fan Remote Control
ventilator fan remote *
button *
rssi
YLYK01YL-VENFAN
Encrypted Advertisements
Partly
Notes:
  • ventilator fan remote button pressed options are ‘swing’, ‘power toggle’, ‘timer 30 minutes’, ‘timer 60 seconds’, ‘strong wind speed’, ‘low wind speed’
  • button press types are ‘short press’ or ‘long press’
  • The state of the remote sensor shows the combination of both, the attributes shows the button being used and the type of press individually.
  • It will return to ‘no press’ after the time set with the reset_timer option.
  • It is advised to change the reset time to 1 second (default = 35 seconds).

#
